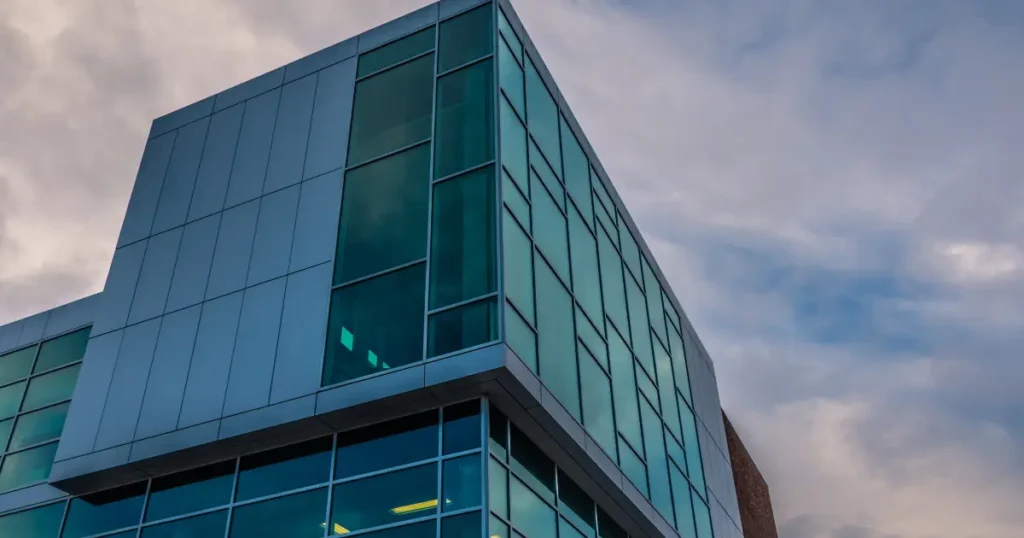

Curtain walls are the protective skin of modern high-rises. They face relentless wind loads, thermal expansion, driving rain, and intense UV exposure. Because the glass panels are often held entirely by adhesives rather than mechanical fasteners, the margin for error is zero.
For curtain wall systems, silicone sealants are the undisputed industry standard. Unlike polyurethanes or acrylics, silicone remains highly flexible at extreme temperatures and is inherently resistant to UV degradation.
However, not all silicone is created equal. Securing a curtain wall requires two very distinct types of sealant, each engineered for a specific job: structural glazing and weathersealing.
The Two Core Sealants You Need
A successful curtain wall relies on a two-part defense system.
1. Structural Silicone (The Anchor)
Structural silicone is the high-strength adhesive that physically holds the glass panel to the aluminum framing. It must transfer wind loads and dead loads (the physical weight of the glass) directly to the building’s core structure.
- Key Trait: High tensile strength and high modulus (stiffness).
- Format: Often comes as a two-part (2K) system for rapid, controlled curing in factory environments, though one-part (1K) high-strength silicones are used for on-site repairs.
- Requirements: Must meet strict structural glazing specifications (such as ASTM C1401).
2. Weatherseal Silicone (The Shield)
Applied to the exterior joints between glass panels, weatherseal silicone prevents air and water infiltration. Because building materials expand and contract with temperature changes, this sealant must stretch and compress repeatedly without tearing or losing adhesion.
- Key Trait: High movement capability (typically ±50% or higher) and low-to-medium modulus.
- Format: Almost exclusively one-part (1K) sealants for easy gunning on-site.
- Requirements: Must have excellent UV resistance and not stain porous substrates if natural stone is integrated into the facade design.
Comparing the Specs
Expert Tip: Never use a weatherseal silicone for a structural application. While weatherseals have superior stretch, they lack the tensile strength to safely bear the load of the glass under heavy wind pressure.
| Feature | Structural Glazing Silicone | Weatherseal Silicone |
|---|---|---|
| Primary Function | Load-bearing & adhesion | Water & air barrier |
| Modulus (Stiffness) | High | Low to Medium |
| Movement Capability | Lower (±12.5% to ±25%) | Very High (±50% to ±100%) |
| Tensile Strength | High | Lower |
Best Practices for Application
Even the highest-grade silicone will fail if applied incorrectly. Surface preparation is the most critical phase of the installation.
Use a lint-free cloth soaked in an approved solvent (like isopropyl alcohol or MEK) to wipe the frame and glass edge. Immediately wipe it dry with a second clean cloth before the solvent evaporates.
Depending on the specific silicone and the finish of the aluminum (anodized vs. fluoropolymer paint), a primer may be necessary. Apply a thin, even coat and allow it to dry completely.
Push a closed-cell or open-cell polyethylene backer rod into the joint. This controls the depth of the sealant and prevents three-sided adhesion, ensuring the silicone can stretch properly.
Gun the silicone into the joint, ensuring it makes full contact with both sides. Immediately tool (smooth) the sealant with a spatula to force it against the substrates and create a clean, concave finish that sheds water.
Conclusion
Choosing the right silicone for your curtain wall isn’t just about picking a premium brand; it’s about deploying the exact chemistry needed for the physical demands of the joint. By pairing a high-modulus structural silicone for load-bearing with a high-movement weatherseal for the exterior, you ensure a facade that is safe, watertight, and built to last decades.
